Select by Size

Select by Size

Script for Adobe Illustrator

ㅤ

Description

Select by Size is a powerful script for Adobe Illustrator that allows users to select objects based on their width and height ranges. Whether working with small icons or large design elements, this tool ensures precise control over selections, saving time and effort.

ㅤ

Installation

  • Place the script in your Illustrator Scripts folder:

    MacOS:     /Applications/Adobe Illustrator <Version>/Presets/<Language>/Scripts
    Windows: C:\Program Files\Adobe\Adobe Illustrator <Version>\Presets\<Language>\Scripts

  • Restart Adobe Illustrator to load the script into the File > Scripts menu.
  • Go to File > Scripts > Select by Size to launch the script.

ㅤ

Using the Script

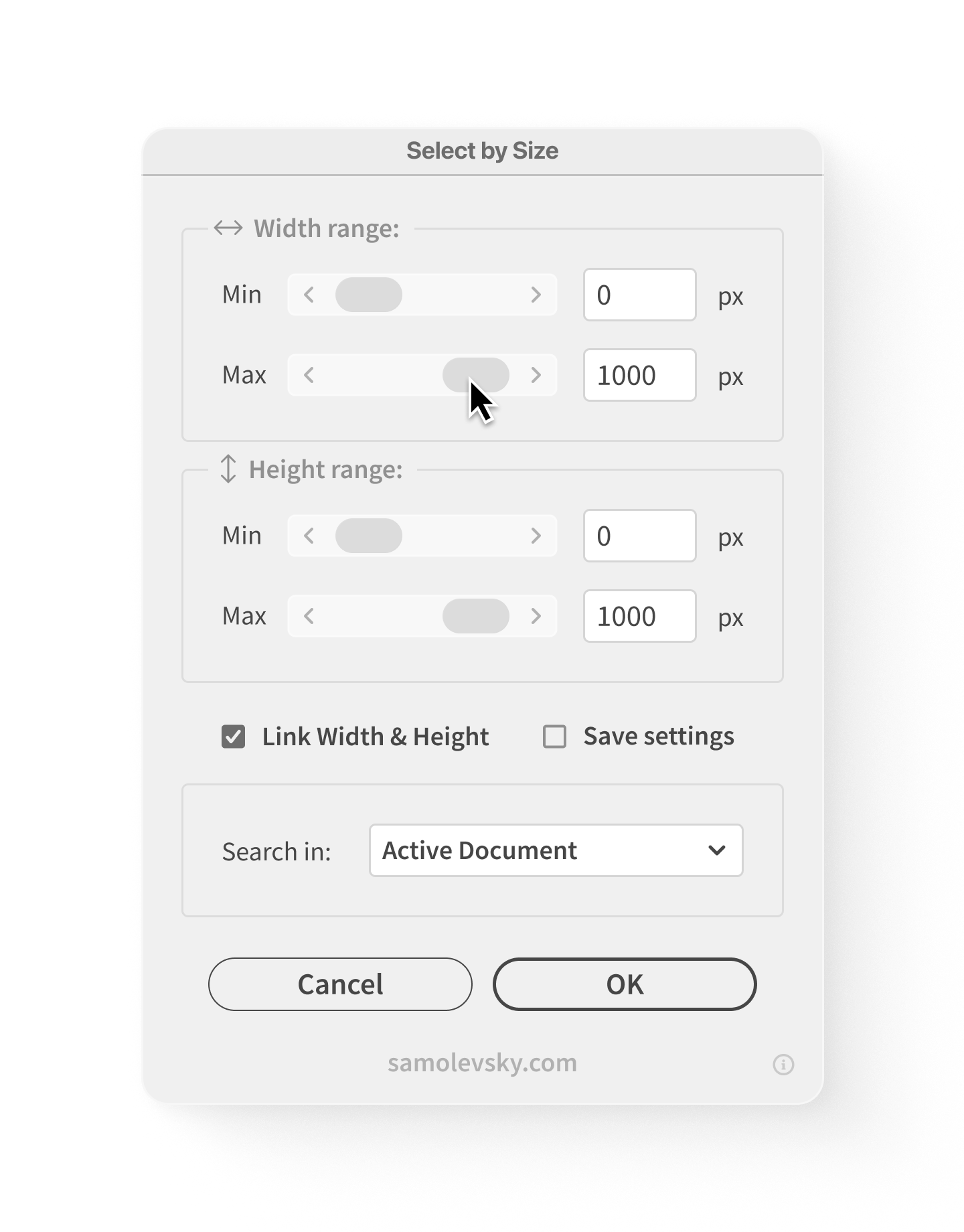

Once executed, a dialog window will appear, displaying multiple options:






ㅤ

ㅤ

➊ Width Range

The Width Range Panel in the script’s UI allows users to define a minimum and maximum width for selecting objects in Adobe Illustrator.

ㅤ

  • 1.1 Set the minimum width (objects smaller than this will be ignored).
  • 1.2 Set the maximum width (objects larger than this will be ignored).
  • Use the sliders or manually enter values.



ㅤ

➋ Height Range

The Height Range Panel in the script’s UI allows users to specify a minimum and maximum height for selecting objects in Adobe Illustrator.

ㅤ

  • 2.1 Set the minimum height (objects smaller than this will be ignored).
  • 2.2 Set the maximum height (objects larger than this will be ignored).
  • Use the sliders or manually enter values.



ㅤ

➌ Linking Width and Height

If you want to maintain proportional selection (e.g., squares), check the Link Width & Height box.

  • Adjusting the width will automatically update the height, and vice versa.

ㅤ

Use the sliders or input fields to set the desired width and height ranges.

  • Sliders: Drag the sliders to adjust the values.
  • Input Fields: Type in the desired values manually.
  • Arrow Keys: Use the up and down arrow keys to increment or decrement the values (hold Shift for larger steps).

ㅤ

Tip: If you want to save your current settings for future use, check the 'Save Settings' box before clicking OK.

ㅤ

ㅤ

➍ Choosing the Selection Scope

Use the Search In dropdown to select where the script should apply the selection criteria:

ㅤ

  • Active Document – Scans all objects in the document.
  • Active Selection – Only checks objects that are already selected.
  • Active Layer – Limits selection to objects within the current layer.
  • Active Artboard – Selects items within the currently active artboard.



➎ Apply Selection

Click OK button to run the script and select objects within the specified width and height range. If you want to cancel the script, click Cancel.

ㅤ

Executing the Script:

  • Click OK to apply the selection criteria.
  • A progress bar will appear if the document contains a large number of objects.
  • Once the script completes, a confirmation message will appear, displaying the number of selected objects.

ㅤ

Viewing Results:

  • After the script runs, the selected objects will be highlighted in the document.
  • The script will also zoom in on the selected objects for better visibility.



➏ Additional Notes

Tips:

  • Units: The script automatically converts values to match the document's ruler units. Ensure your document's ruler units are set correctly before running the script.
  • Proportional Selection: Use the Link Width & Height option for proportional selection, such as selecting squares or rectangles with specific aspect ratios.
  • No Objects Selected: If no objects are selected, unlock and make visible all document items and double-check the width and height ranges to ensure they match the dimensions of the objects in your document.
  • Tooltips: Hovering over elements provides helpful descriptions.
  • User Guide: Click the ⏼ icon at the bottom right of the panel to open the online user guide.

ㅤ

ㅤ

Overall, Select by Size is a powerful tool for designers who need to select objects based on specific dimensions, saving time and effort in complex Illustrator projects.

ㅤ

ㅤ

ㅤ

ㅤ

Leave a comment

Select by Size

Version: 1.0.0

Updated:

Download Select by Size

    • 1.0.0 – Initial release.

    ㅤ

    Tested on MacOS:

    • Adobe Illustrator 2023 (27.0)
    • Adobe Illustrator 2024 (28.1)
    • Adobe Illustrator 2025 (29.0)

  • Supported Versions:

    • Compatible with Adobe Illustrator CS6 and later, including Adobe Illustrator CC versions.

    Operating Systems:

    • Works on both macOS and Windows platforms.

  • End User License Agreement (EULA)

    Last Updated: 21.12.2024

    ㅤ

    This End User License Agreement (“Agreement”) is a legal agreement between you (“User” or “Licensee”) and Samolevsky.com (“Licensor”) regarding the use of the Adobe Illustrator scripts (“Software”). By downloading, installing, or using the Software, you agree to be bound by the terms of this Agreement.

    ㅤ

    1. Grant of License

    Licensor grants the User a non-exclusive, non-transferable, and revocable license to use the Software in accordance with this Agreement.

    • Free Software: If the Software is provided for free, you may use it for personal or commercial purposes without payment, subject to the restrictions outlined in this Agreement.
    • Paid Software: If the Software is provided for a fee, you may use it only after payment has been made in full.

    ㅤ

    2. Usage Rights

    You are permitted to:

    • Install and use the Software on devices you own or control.
    • Use the Software in your personal or commercial projects, subject to compliance with this Agreement.

    ㅤ

    3. Restrictions

    You may NOT:

    • Reverse engineer, decompile, or otherwise attempt to discover the source code, underlying ideas, or algorithms of the Software.
    • Reuse, incorporate, or integrate any portion of the Software into any other software, product, or project, except as expressly permitted by the Licensor in writing.
    • Resell, redistribute, or share the Software, whether in its original or modified form, without prior written consent from the Licensor.
    • Claim ownership of the Software or its underlying code.
    • Use the Software in any way that violates applicable laws or regulations.

    ㅤ

    4. Ownership

    The Software and all intellectual property rights therein remain the exclusive property of the Licensor. This Agreement does not transfer ownership of the Software or any intellectual property rights to the User.

    ㅤ

    5. Disclaimer of Warranties

    THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND NONINFRINGEMENT. IN NO EVENT SHALL THE LICENSOR BE LIABLE FOR ANY CLAIM, DAMAGES, OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT, OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

    ㅤ

    6. Limitation of Liability

    To the maximum extent permitted by law, Licensor shall not be liable for any damages, including but not limited to direct, indirect, incidental, special, or consequential damages, arising out of or related to the use or inability to use the Software.

    ㅤ

    7. Termination

    This Agreement is effective until terminated. Licensor may terminate this Agreement immediately if you breach any term of this Agreement. Upon termination, you must cease all use of the Software and destroy any copies in your possession.

    ㅤ

    8. Updates and Support

    Licensor is not obligated to provide updates, support, or maintenance for the Software. However, updates may be provided at the sole discretion of the Licensor.

    ㅤ

    9. Governing Law

    This Agreement shall be governed by and construed in accordance with the laws of the State of New York, without regard to its conflict of law principles.

    ㅤ

    10. Entire Agreement

    This Agreement constitutes the entire agreement between you and the Licensor concerning the Software and supersedes all prior or contemporaneous understandings regarding such subject matter.

    By using the Software, you acknowledge that you have read this Agreement, understand it, and agree to be bound by its terms.

    ㅤ

    For any questions or concerns regarding this Agreement, please contact us at hello@samolevsky.com

Required Software

Adobe Illustrator

Learn more

Use this text to share information about your brand with your customers. Describe a product, share announcements, or welcome customers to your store.

Adobe Illustrator is a professional vector graphics software developed by Adobe Inc. It is widely used by designers, illustrators, and artists for creating a variety of digital artwork, including logos, icons, illustrations, typography, and complex design layouts. Illustrator is known for its precision and scalability, allowing users to create high-quality graphics that can be resized without losing clarity. Its features include powerful drawing tools, customizable brushes, advanced typography options, and seamless integration with other Adobe Creative Cloud applications. Illustrator is a go-to tool for creative professionals working on projects for print, web, and multimedia platforms.

  • 🅰 Locating the Scripts Folder

    To install a Select by Size.jsx script in Adobe Illustrator, you need to place it in the correct directory where Illustrator
can recognize it. Follow these steps to locate the Scripts folder:

    1. MacOS:
      Open Finder and navigate to:
      Applications/Adobe Illustrator <Version>/Presets/<Language>/Scripts.
    2. Windows:
      Open File Explorer and navigate to:
      C:\Program Files\Adobe\Adobe Illustrator <Version>\Presets\<Language>\Scripts
    3. Replace <Version> with your Adobe Illustrator version (e.g., 2025).
    4. Replace <Language> with your language folder (e.g., "de_DE" for German, "en_US" for English).

    ㅤ

    🅱 Installing the Script

    1. Copy the Script File: Copy the Select by Size.jsx file to the Scripts folder located in the path above.
    2. On some systems, you may need administrator permissions to modify the Scripts folder.
    3. Restart Adobe Illustrator: To refresh the scripts menu, close and reopen Adobe Illustrator.

    ㅤ

    Explore our complete guide to mastering Adobe Illustrator scripts.

    1. Open Adobe Illustrator and ensure a document is active.
    2. Go to the top menu bar and select File > Scripts.
    3. If the script is installed in the Scripts folder, it will appear in the dropdown list.
    4. Click the Select by Size script to run it.
    5. The Select by Size script will execute, and any dialog boxes or results will appear based on the script’s functionality.

    ☻ Before running any scripts, it’s strongly advised to save your work — especially when working with complex or large documents.
