Seamless Pattern Maker

Script for Adobe Illustrator

✦ Available exclusively on Patreon for Pro supporters.

ㅤ

Description

The Seamless Pattern Maker is an Adobe Illustrator script that automates the creation of repeating patterns from selected artwork. The script duplicates selected objects in a grid formation with customizable spacing and provides advanced features for creating seamless, tileable patterns suitable for backgrounds, textures, and decorative elements.

ㅤ

Key Features

Grid-based duplication with adjustable rows, columns, and spacing.
Real-time preview with live updating.
Seamless pattern creation with automatic masking.
Random rotation capabilities with seamless edge matching.
Background color customization.
Automatic pattern swatch generation.

ㅤ

Installation

1. Download the Seamless Pattern Maker.jsx script file.

2. Place the script in your Adobe Illustrator Scripts folder:

⮑ Mac: /Applications/Adobe Illustrator <Version>/Presets/<Language>/Scripts

⮑ Windows: C:\Program Files\Adobe\Adobe Illustrator <Version>\Presets\<Language>\Scripts

3. Restart Adobe Illustrator if it's already running.

ㅤ

Using the Script

Open Adobe Illustrator and create or open a document.
Select the artwork you want to turn into a pattern.
Run the script via File > Scripts > Seamless Pattern Maker.

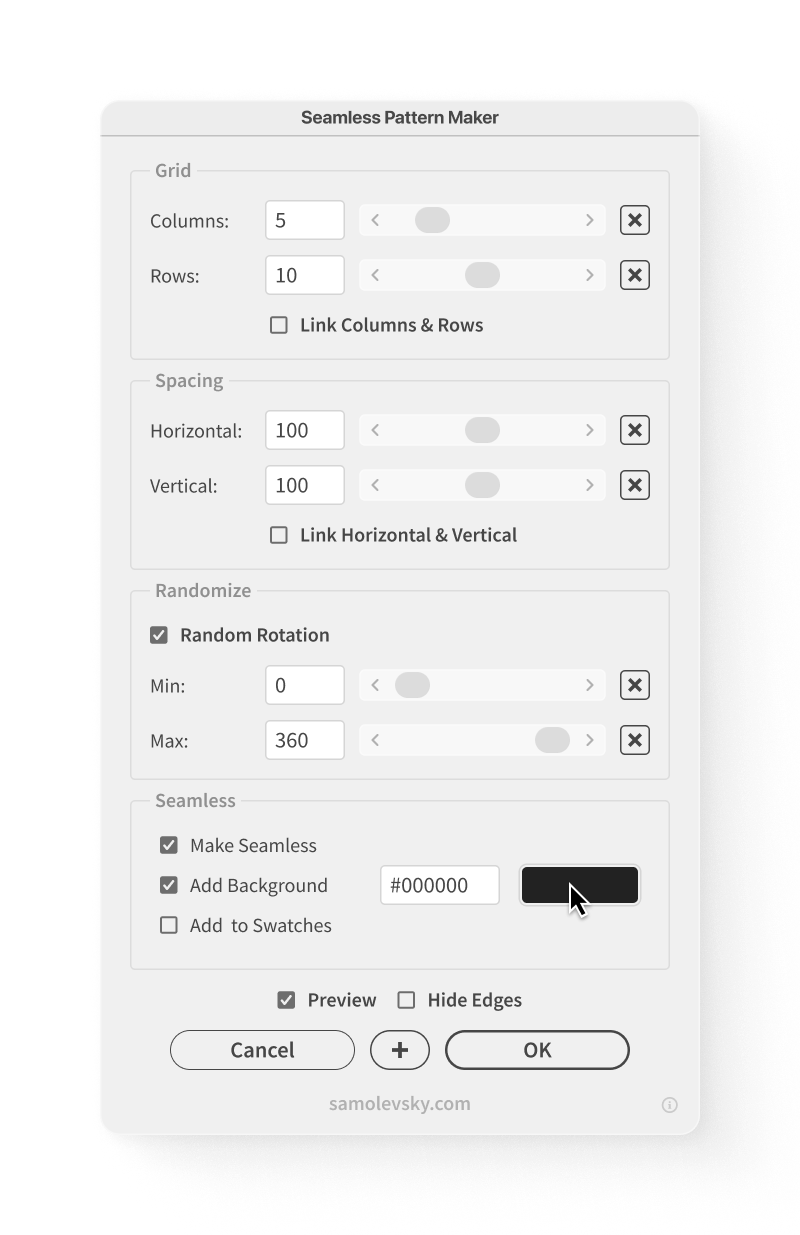

The script dialog will appear with multiple options:

ㅤ

ㅤ

➊ Set Grid Dimensions

Adjust "Columns" using the text field, slider, or arrow keys.
Adjust "Rows" using the text field, slider, or arrow keys.
Use the "Link Columns & Rows" checkbox to keep both values synchronized.

ㅤ

➋ Configure Spacing

Set "Horizontal" spacing - distance between columns.
Set "Vertical" spacing - distance between rows.
Use the "Link Horizontal & Vertical" checkbox to maintain equal spacing.
Negative values create overlapping arrangements.

ㅤ

➌ Random Rotation

Enable random rotation (optional):

Check "Random Rotation" to activate angle randomization.
Set "Min" angle (0-360 degrees) for the minimum rotation.
Set "Max" angle (0-360 degrees) for the maximum rotation.
When "Make Seamless" is enabled, edge rotations are automatically matched for seamless tiling.

ㅤ

➍ Seamless Pattern Options

Make Seamless:

Check "Make Seamless" to create a clipping mask for seamless tiling.
This creates a masking rectangle based on the grid dimensions.
Essential for patterns that will tile perfectly.

ㅤ

Background Settings:

Check "Add Background" to include a colored background rectangle.
Enter a hex color code (e.g., #FFFFFF for white) or click the color swatch.
Click the color swatch to open Illustrator's color picker.

ㅤ

Add to Swatches:

Check "Add to Swatches" (only available when "Make Seamless" is enabled).
Automatically adds the finished pattern to your Swatches panel.

ㅤ

➎ Live Preview

The "Preview" checkbox is enabled by default
See changes in real-time as you adjust settings
Use "Hide Edges" to toggle visibility of object outlines

ㅤ

Advanced Tips

Reset Controls:
Click the "×" button next to any parameter to reset to default.
Keyboard Shortcuts:
Use Up/Down arrows in focused text fields to adjust values (hold Shift for larger steps).
Seamless Tiling:
For perfect seamless patterns, ensure your grid is at least 2×2 and "Make Seamless" is enabled.
Pattern Swatches:
When added to swatches, patterns can be applied as fills to any shape.
Layer Management:
All pattern elements are created on the same layer as the original selection.

ㅤ

➏ Finalize Pattern

Apply Changes:

Click "OK" to apply the pattern with all current settings.
Pattern elements are grouped for easy management.

Cancel:

Click "Cancel" to discard changes and restore original selection.

Navigation:

Click the "+" button to fit the selection in the window.

ㅤ

☻ Conclusion

The Seamless Pattern Maker script transforms Adobe Illustrator's pattern creation workflow from a manual, time-consuming process into an efficient, automated operation. With its intuitive interface and real-time preview capabilities, designers can experiment with different grid configurations, spacing options, and randomization settings while seeing immediate results.

Whether you're creating textile patterns, website backgrounds, decorative elements, or packaging designs, this script provides a professional-grade solution that integrates seamlessly into existing Illustrator workflows.

ㅤ

#Arrange

Seamless Pattern Maker

Version: 1.0.0

Updated: September 6, 2025

Download Seamless Pattern Maker

1.0.0 – Initial release.
ㅤ
ㅤ
Tested on MacOS:
ㅤ
- Adobe Illustrator 2023 (27.0)
- Adobe Illustrator 2024 (28.1)
- Adobe Illustrator 2025 (29.0)
Supported Versions:
- Compatible with Adobe Illustrator CS6 and later, including Adobe Illustrator CC versions.
Operating Systems:
- Works on both macOS and Windows platforms.
End User License Agreement (EULA)
Last Updated: 21.12.2024
ㅤ
This End User License Agreement (“Agreement”) is a legal agreement between you (“User” or “Licensee”) and Samolevsky.com (“Licensor”) regarding the use of the Adobe Illustrator scripts (“Software”). By downloading, installing, or using the Software, you agree to be bound by the terms of this Agreement.
ㅤ
1. Grant of License
Licensor grants the User a non-exclusive, non-transferable, and revocable license to use the Software in accordance with this Agreement.
- Free Software: If the Software is provided for free, you may use it for personal or commercial purposes without payment, subject to the restrictions outlined in this Agreement.
- Paid Software: If the Software is provided for a fee, you may use it only after payment has been made in full.
ㅤ
2. Usage Rights
You are permitted to:
- Install and use the Software on devices you own or control.
- Use the Software in your personal or commercial projects, subject to compliance with this Agreement.
ㅤ
3. Restrictions
You may NOT:
- Reverse engineer, decompile, or otherwise attempt to discover the source code, underlying ideas, or algorithms of the Software.
- Reuse, incorporate, or integrate any portion of the Software into any other software, product, or project, except as expressly permitted by the Licensor in writing.
- Resell, redistribute, or share the Software, whether in its original or modified form, without prior written consent from the Licensor.
- Claim ownership of the Software or its underlying code.
- Use the Software in any way that violates applicable laws or regulations.
ㅤ
4. Ownership
The Software and all intellectual property rights therein remain the exclusive property of the Licensor. This Agreement does not transfer ownership of the Software or any intellectual property rights to the User.
ㅤ
5. Disclaimer of Warranties
THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND NONINFRINGEMENT. IN NO EVENT SHALL THE LICENSOR BE LIABLE FOR ANY CLAIM, DAMAGES, OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT, OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
ㅤ
6. Limitation of Liability
To the maximum extent permitted by law, Licensor shall not be liable for any damages, including but not limited to direct, indirect, incidental, special, or consequential damages, arising out of or related to the use or inability to use the Software.
ㅤ
7. Termination
This Agreement is effective until terminated. Licensor may terminate this Agreement immediately if you breach any term of this Agreement. Upon termination, you must cease all use of the Software and destroy any copies in your possession.
ㅤ
8. Updates and Support
Licensor is not obligated to provide updates, support, or maintenance for the Software. However, updates may be provided at the sole discretion of the Licensor.
ㅤ
9. Governing Law
This Agreement shall be governed by and construed in accordance with the laws of the State of New York, without regard to its conflict of law principles.
ㅤ
10. Entire Agreement
This Agreement constitutes the entire agreement between you and the Licensor concerning the Software and supersedes all prior or contemporaneous understandings regarding such subject matter.
By using the Software, you acknowledge that you have read this Agreement, understand it, and agree to be bound by its terms.
ㅤ
For any questions or concerns regarding this Agreement, please contact us at hello@samolevsky.com
