Smart Object Replacer

Script for Adobe Illustrator

✦ Available exclusively on Patreon for Pro supporters.

ㅤ

Description

Smart Object Replacer is a powerful Adobe Illustrator script that streamlines the process of replacing multiple selected objects with a source object. Whether you need to replace objects with clipboard content, use an existing object from your selection, or apply a document symbol across multiple targets, this script provides flexible options to automate repetitive replacement tasks.

ㅤ

Key Features

Multiple Source Options - Replace with clipboard content, selected objects, or document symbols
One-click Workflow - Automates tedious manual copy-paste-resize tasks
Smart Sizing - Fit to bounds or copy exact dimensions with aspect ratio control
Style Matching - Copy colors, opacity, and blend modes from target objects
Flexible Targeting - Replace whole groups or individual items within groups
Non-destructive Option - Keep original objects while adding replacements

ㅤ

Installation

1. Download the Smart Object Replacer.jsx script file.

2. Place the script in your Adobe Illustrator Scripts folder:

⮑ Mac: /Applications/Adobe Illustrator <Version>/Presets/<Language>/Scripts

⮑ Windows: C:\Program Files\Adobe\Adobe Illustrator <Version>\Presets\<Language>\Scripts

3. Restart Adobe Illustrator if it's already running.

ㅤ

Run the Script

Open a document in Adobe Illustrator
Select the objects you want to replace
Execute the script from the File > Scripts > Smart Object Replacer

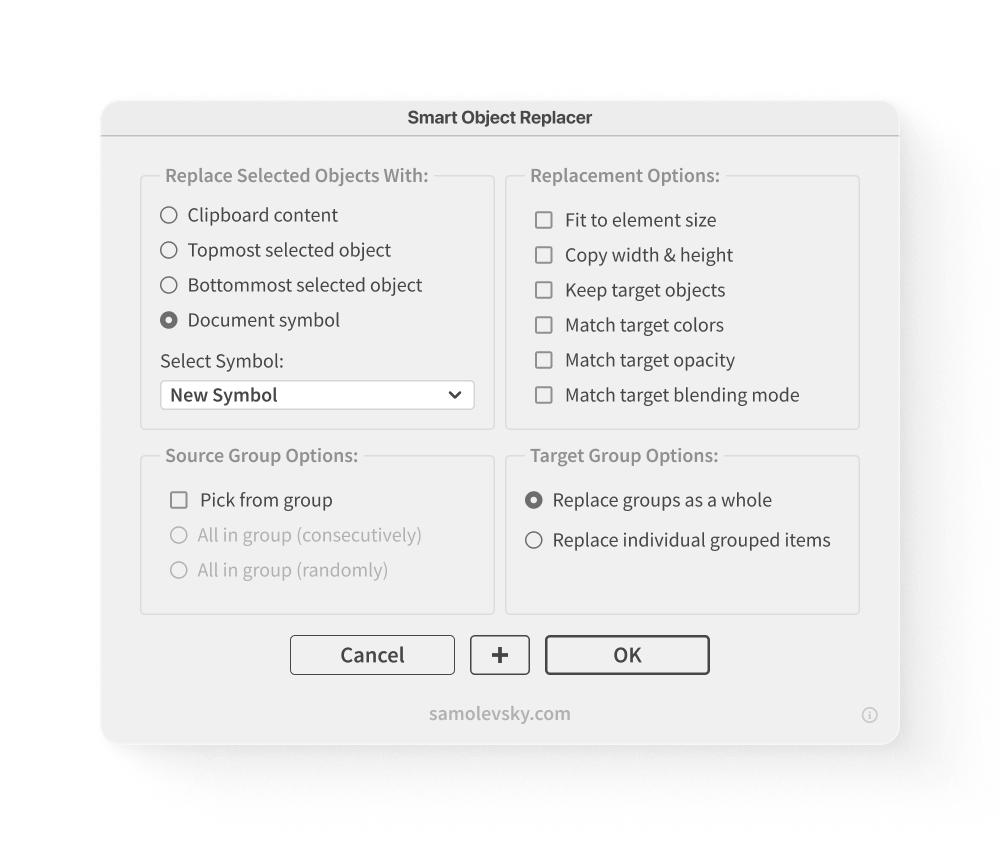

The Smart Object Replacer dialog will appear with multiple options:

ㅤ

ㅤ

Using the Script

ㅤ

➊ Choose Your Source Object

In the "Replace Selected Objects With" panel, select one of four options:

ㅤ

🅰 Clipboard Content

When to use: When you've copied an object you want to use as replacement
How it works: Uses whatever is currently in your clipboard
Tip: Copy your desired replacement object before running the script

ㅤ

🅱 Topmost Selected Object

When to use: When you want to use the front-most selected object as your source
How it works: The object at the top of the stacking order becomes the replacement template
Note: This object won't be replaced (it becomes the source)

ㅤ

🅲 Bottommost Selected Object

When to use: When you want to use the back-most selected object as your source
How it works: The object at the bottom of the stacking order becomes the replacement template
Note: This object won't be replaced (it becomes the source)

ㅤ

🅳 Document Symbol

When to use: When you want to use a symbol from your Symbols panel
How it works: Creates instances of the selected symbol
Setup: Choose from the dropdown menu of available document symbols

ㅤ

➋ Configure Source Group Options

If your source object is a group, use the "Source Group Options" panel:

ㅤ

Unchecked: Uses the entire group as one replacement object
Checked: Uses individual items within the group as separate sources

ㅤ

When "Pick from Group" is enabled:

All in group (consecutively): Cycles through group items in order
All in group (randomly): Randomly selects items from the group for each replacement

ㅤ

➌ Set Replacement Options

Configure how replacements should be sized and positioned:

ㅤ

Sizing Options (choose one):

Fit to element size: Scales replacement to fit within target bounds (maintains aspect ratio)
Copy width & height: Makes replacement exactly the same size as target (may distort aspect ratio)
Neither checked: Uses replacement object's original size

ㅤ

Additional Options:

Keep target objects: Preserves original objects instead of deleting them
Match target colors: Applies the target's fill color to the replacement
Match target opacity: Sets replacement opacity to match the target
Match target blending mode: Applies target's blend mode to replacement

ㅤ

➍ Handle Target Groups

Use the "Target Group Options" panel when you have groups selected:

Replace groups as a whole: Treats entire groups as single replacement targets
Replace individual grouped items: Replaces each item inside groups separately

ㅤ

➎ Execute the Replacement

Click OK to start the replacement process
Watch the progress bar as replacements are made
Use Cancel to abort the operation
Use the ⏼ button to fit your selection in the current view

ㅤ

☻ Wrap-up

The Smart Object Replacer is a comprehensive tool that transforms tedious manual replacement tasks into efficient automated processes.

Its intuitive interface combined with powerful options makes it suitable for both simple replacements and complex design workflows involving groups, symbols, and precise visual matching.

ㅤ

#Arrange

Smart Object Replacer

Version: 1.0.0

Updated: September 29, 2025

Download Smart Object Replacer

1.0.0 – Initial release.
ㅤ
ㅤ
Tested on MacOS:
ㅤ
- Adobe Illustrator 2023 (27.0)
- Adobe Illustrator 2024 (28.1)
- Adobe Illustrator 2025 (29.0)
Supported Versions:
- Compatible with Adobe Illustrator CS6 and later, including Adobe Illustrator CC versions.
Operating Systems:
- Works on both macOS and Windows platforms.
